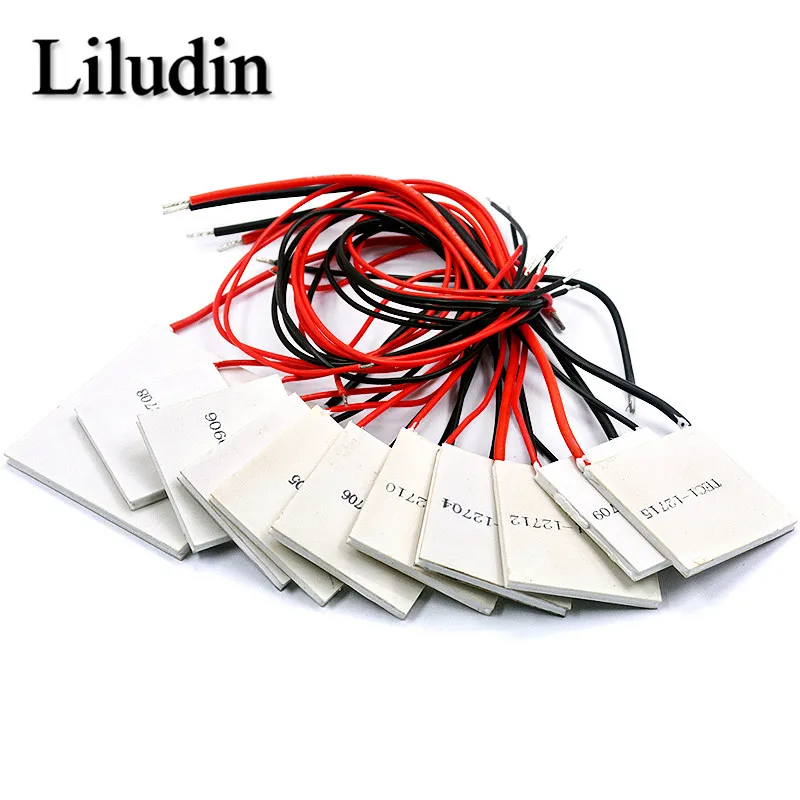

Peltier-Element TEC1-12706, 40×40 mm, 12 V

Description : Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler. Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts These devices must be used in conjunction with a heat sink to avoid burned Each device is full inspected and tested TEC1-12703 40*40 12V3A Model:TEC1-12703 Rated voltage:12V Rated current:3A Cooling capacity:29.7W Maximum temperature difference:65 ° Dimensions:40*40*4.6 Positive and negative:Red positive, black negative TEC1-12704 40*40 12V4A Chip type: TEC1-12704 Overall dimensions: 40*40*4.0mm element 127 Wire specification: lead length 300 + 5mm RV standard wire single head 5mm tin plating Internal resistance: 3.0~3.3 ohm (ambient temperature 23 - 1 DEG C, 1kHZ Ac) Maximum temperature: Tmax (Qc=0) 63 DEG C. Working current: Imax=4A (rated voltage) Rated voltage: DC12V (Vmax:15.5V) Cooling power: Qcmax 36W Assembly pressure: 85N/cm2 Working environment: temperature range -55 DEG C to 83 C (high ambient temperature will directly affect the efficiency of refrigeration) Packaging: Standard 704 silicone rubber seal Packaging standard: foam box packaging, storage conditions ambient temperature -10 C ~ 40 C Storage conditions: -40~60 TEC1-12705 40*40 Chip Type: TEC1-12705  Dimensions: 40 * 40 * 3.8mm element number 127 on  Internal resistance: 2.5 ~ 2.8Ω (ambient temperature of 23 ± 1 , 1kHZ Ac test)  Maximum temperature:  Tmax (Qc = 0) over 67 .  Working current: Imax = 4.3-4.6A (rated at 12V)  Rated voltage: 12V (Vmax: 15V starting current 5.8A)  Refrigeration power: Qcmax 50-60W  Working environment: temperature range -55  ~ 83  (high ambient temperatures drop directly affect the cooling efficiency)  Packaging process: four weeks standard 704 silicone rubber seal TEC1-12706 40*40 Chip Type: TEC1-1
