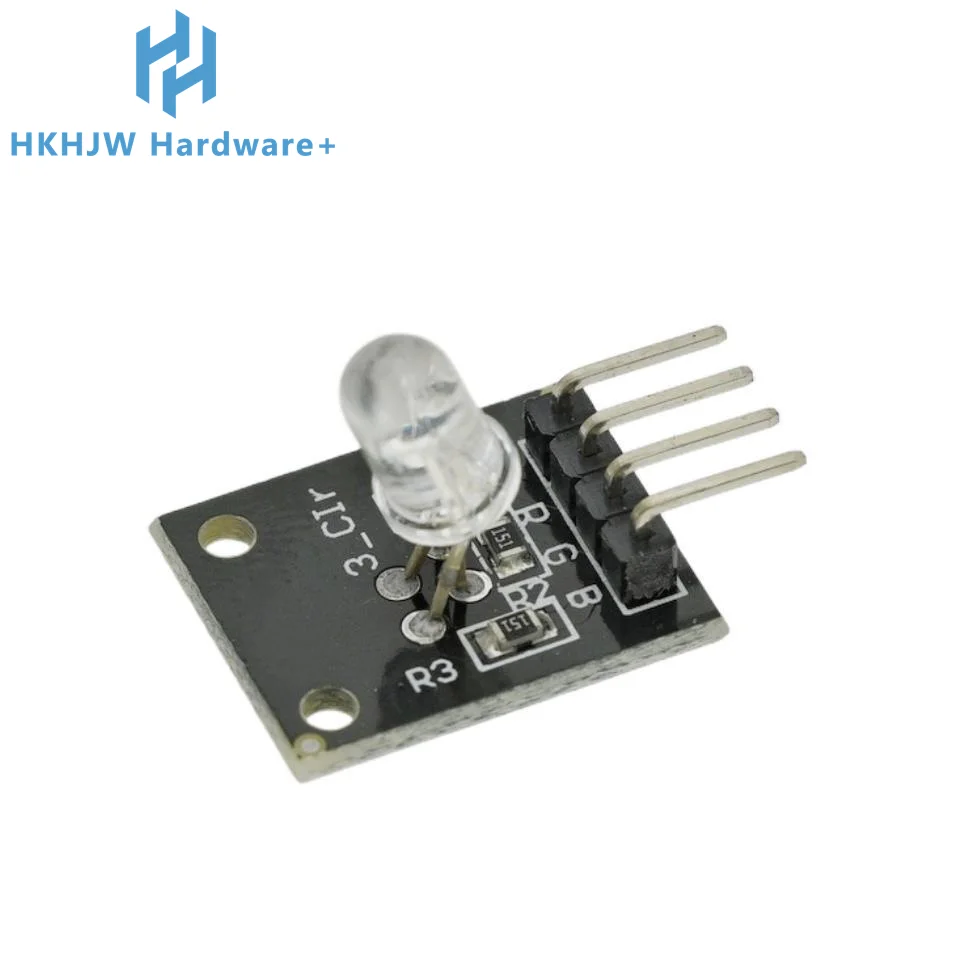

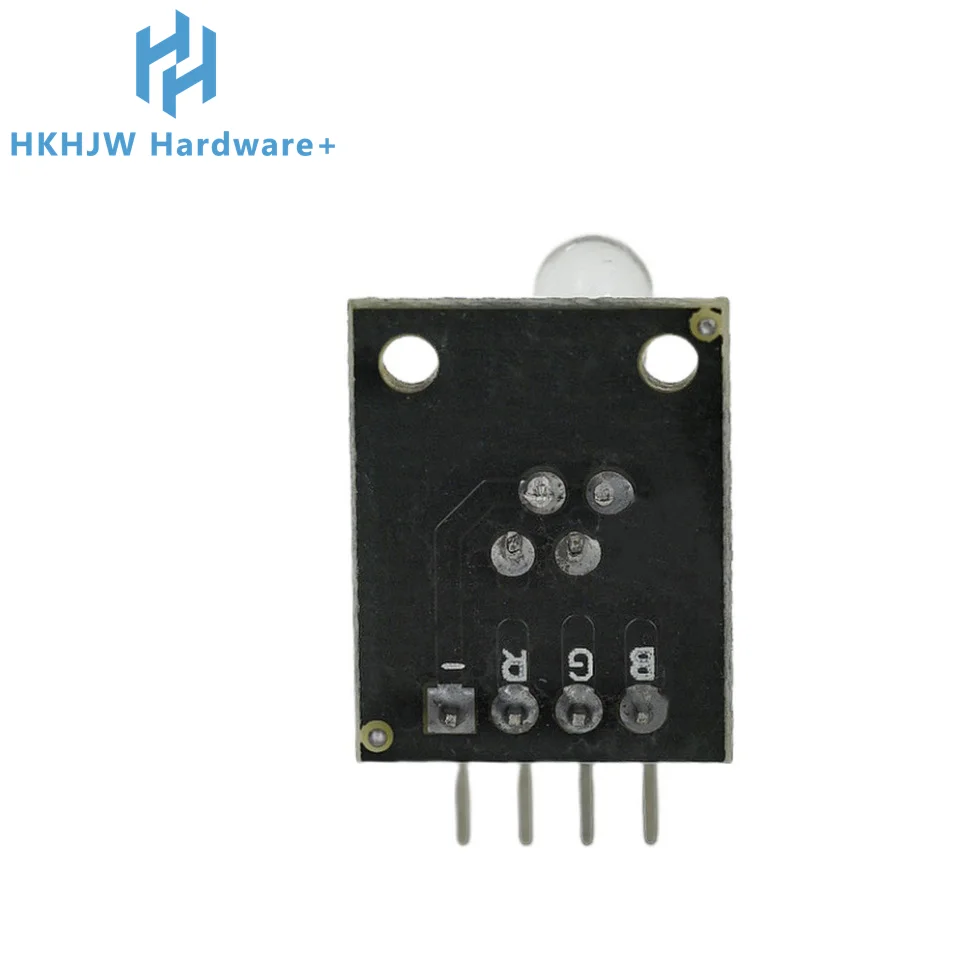

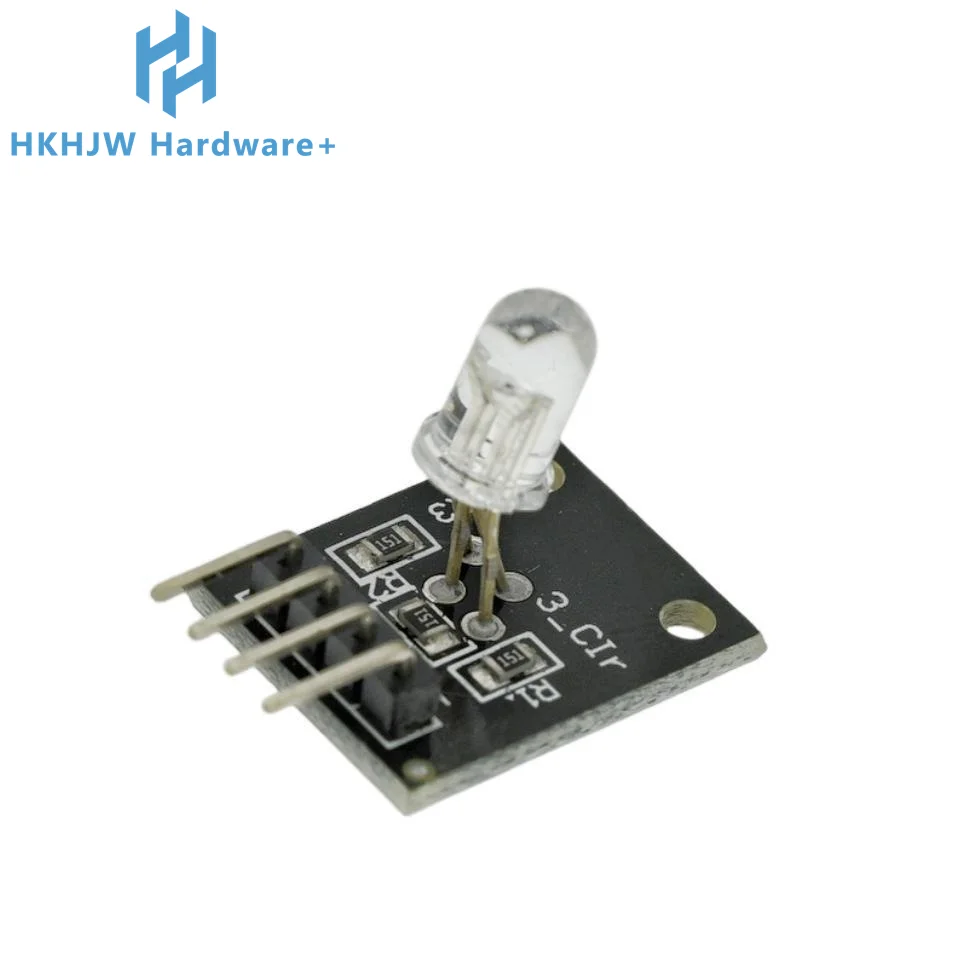

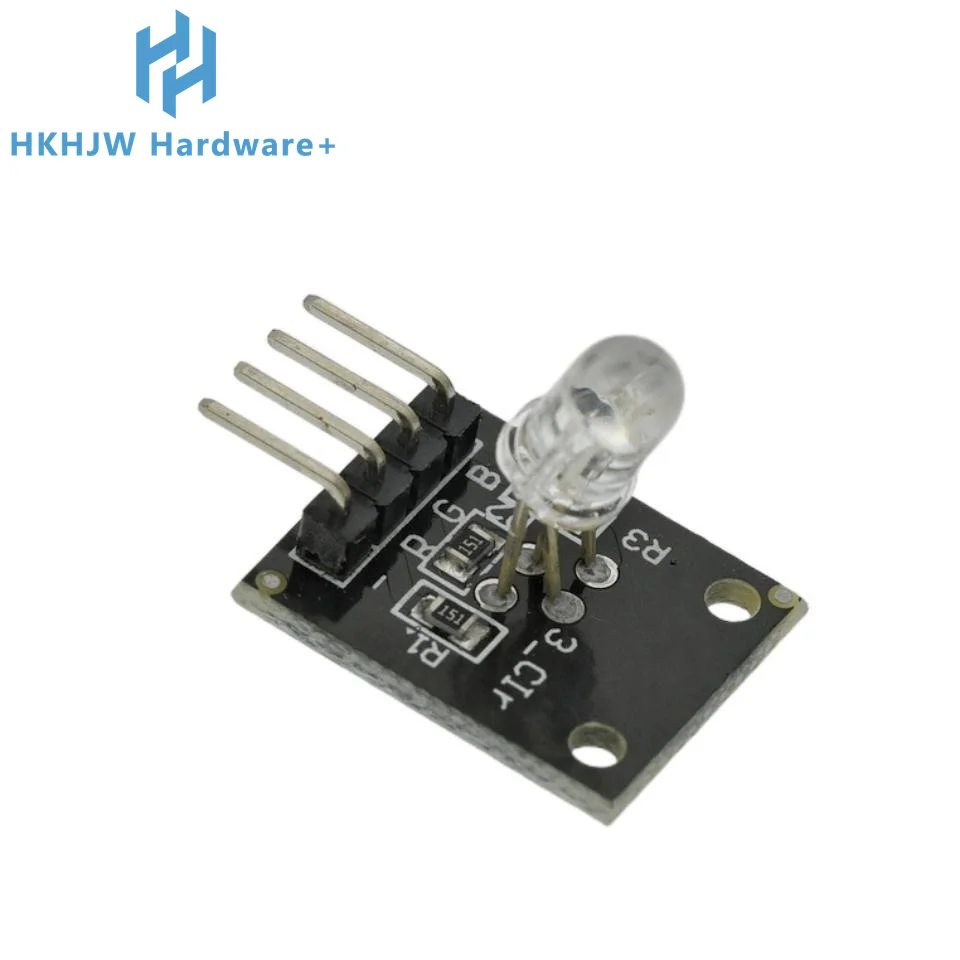

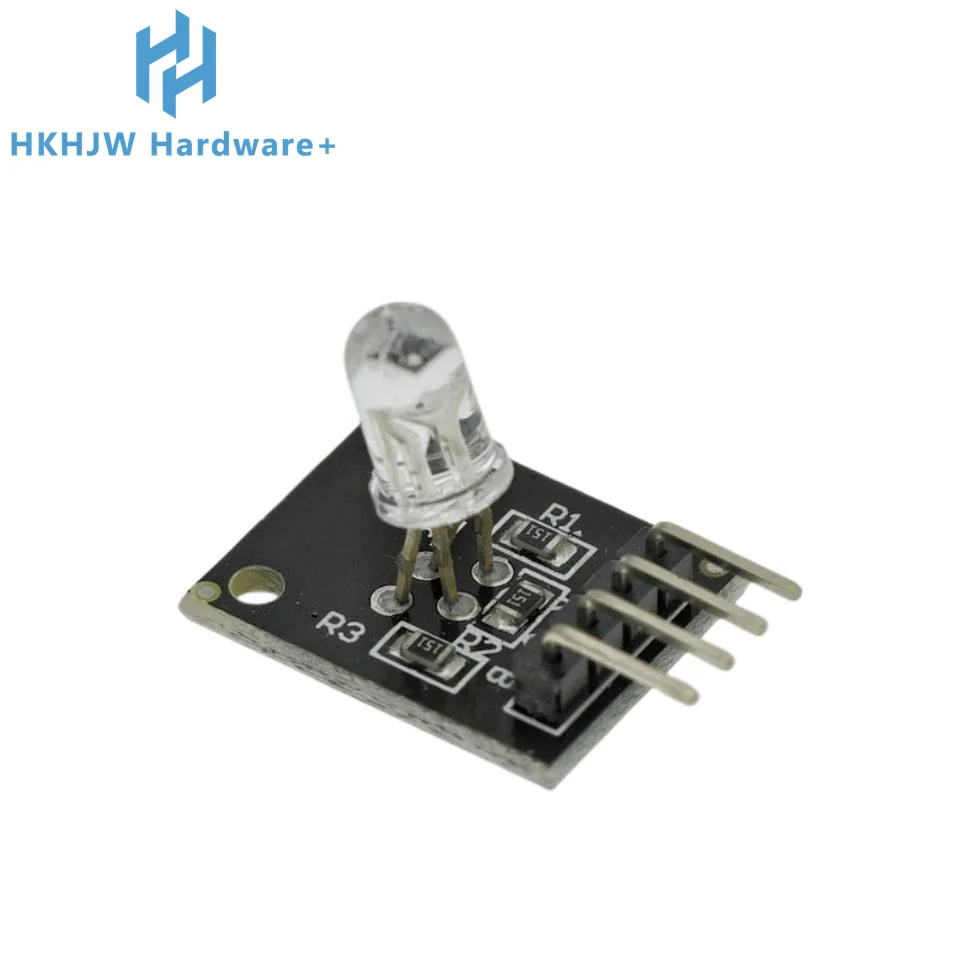

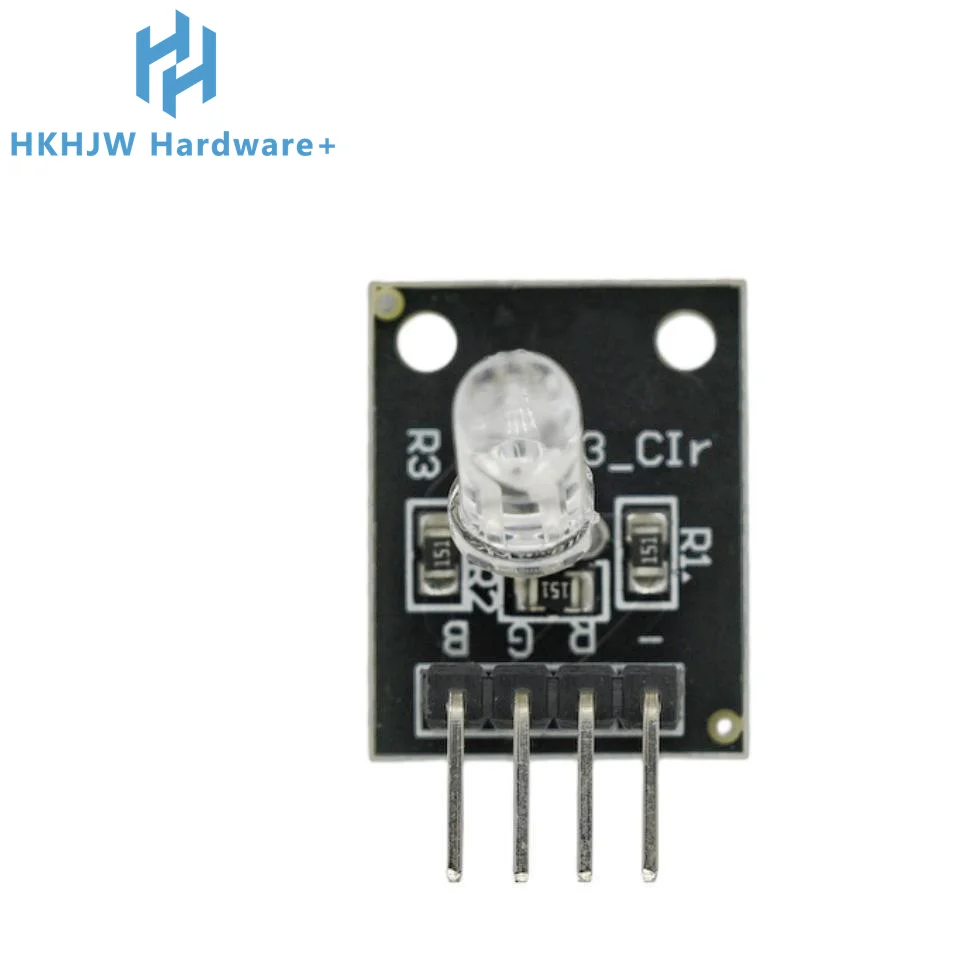

Ky016 smart electronics 4pin rgb modul KY-016 drei farben 3 farbe rgb led sensor modul für arduino diy starter kit
RGB full color LED module RGB LED module LED is made of a plug-in full-color, by R, G, B three-pin PWM input voltage can be adjusted in three primary colors (red / blue / green) strength in order to achieve full color mixing effect.Control module with for Arduino cool lighting effects can be achieved. Product Features: 1.The use of plug-in full-color LED 2.The RGB tricolor current-limiting resistance to prevent burn out 3.is obtained by PWM adjusting three primary colors can mix different colors Product parameters: 1.Size: 20 x 10 x 7mm (Lx Wx H) 2.PCB color: black 3. Use 5mm full-color ultra-bright LED 4. With current limiting resistance to prevent burning out LED 5. Can be connected to a variety of single chip microcomputer 6. Light up LED at high level 7. Working voltage :3.3V/5V 8. Weight :2.2g 9. It can be directly plugged into the Arduino motherboard without dupont cable connection 10.Based for arduino simple test program
