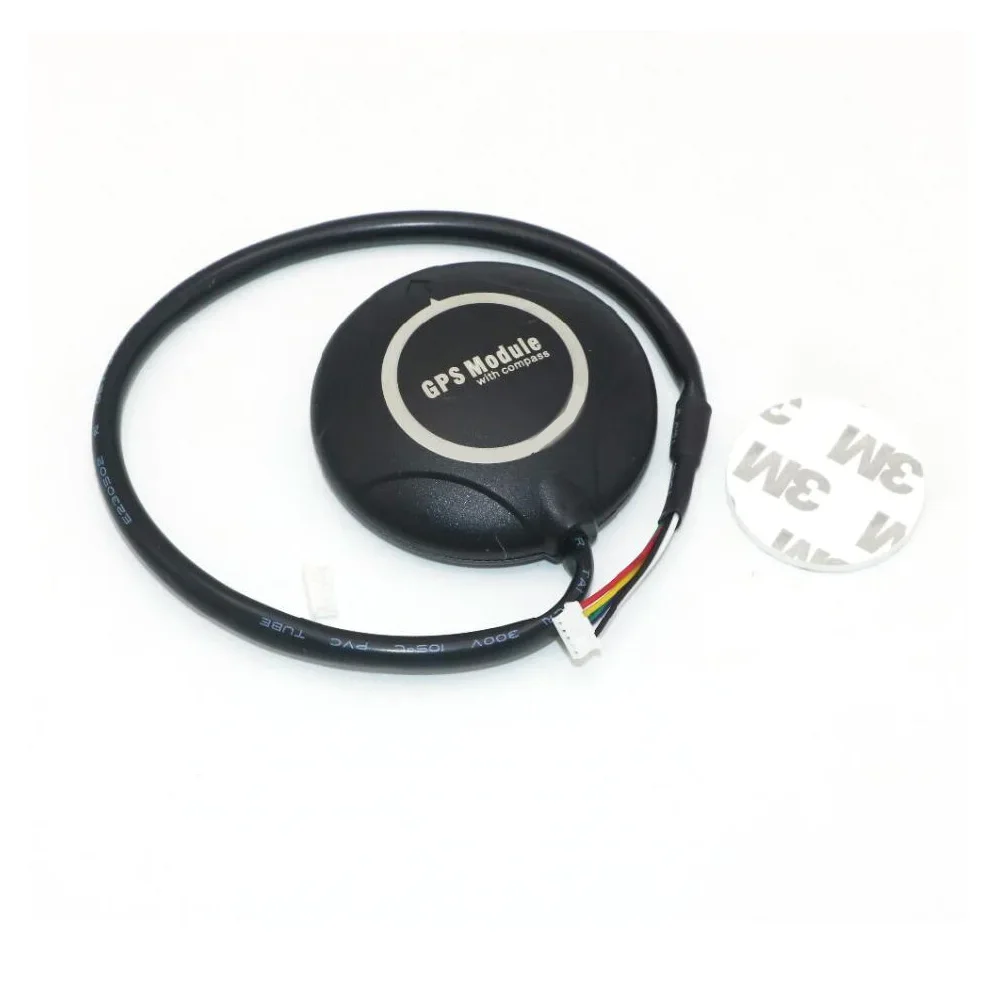

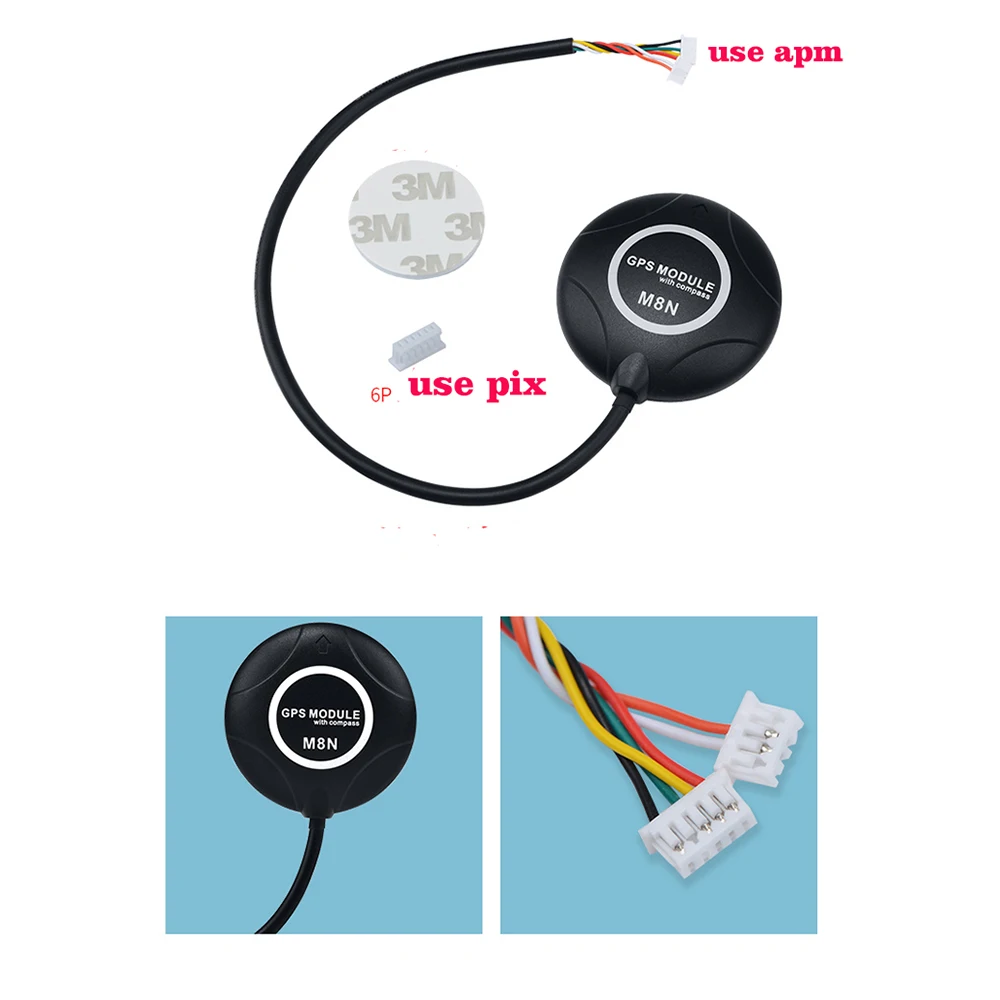

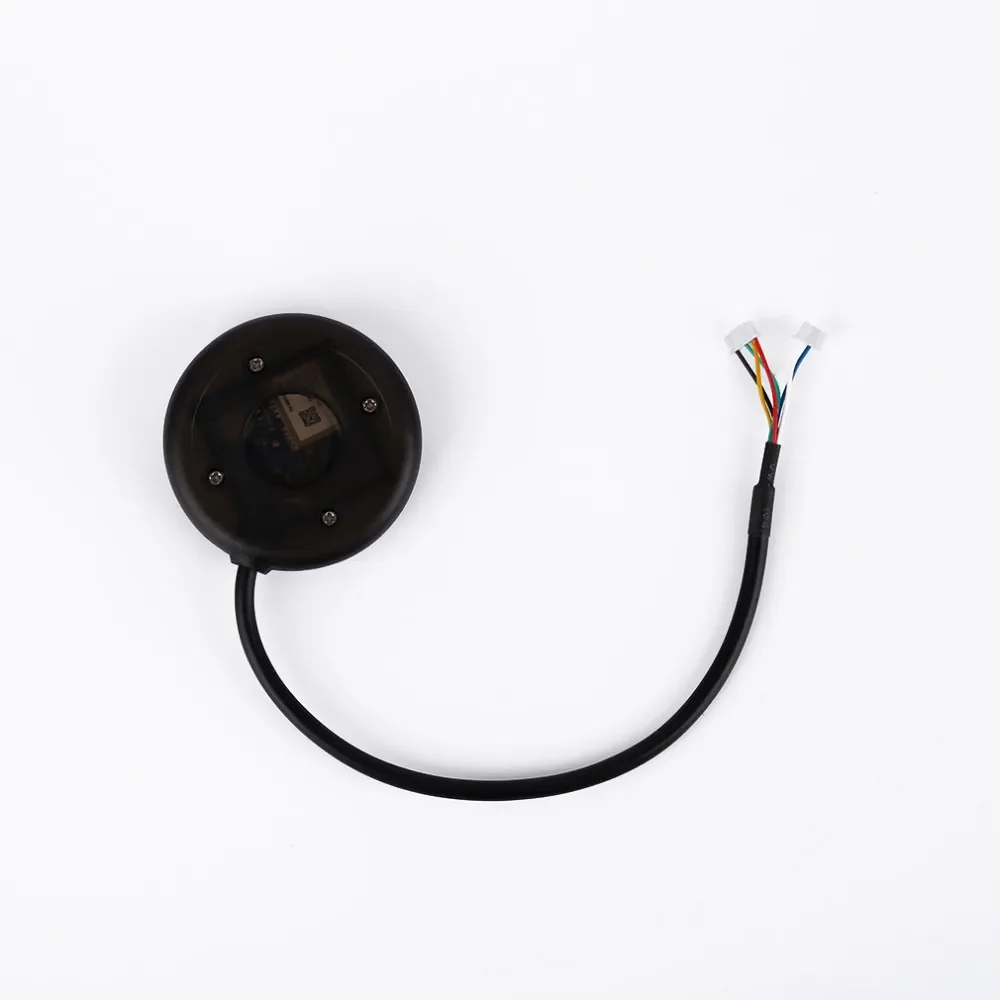

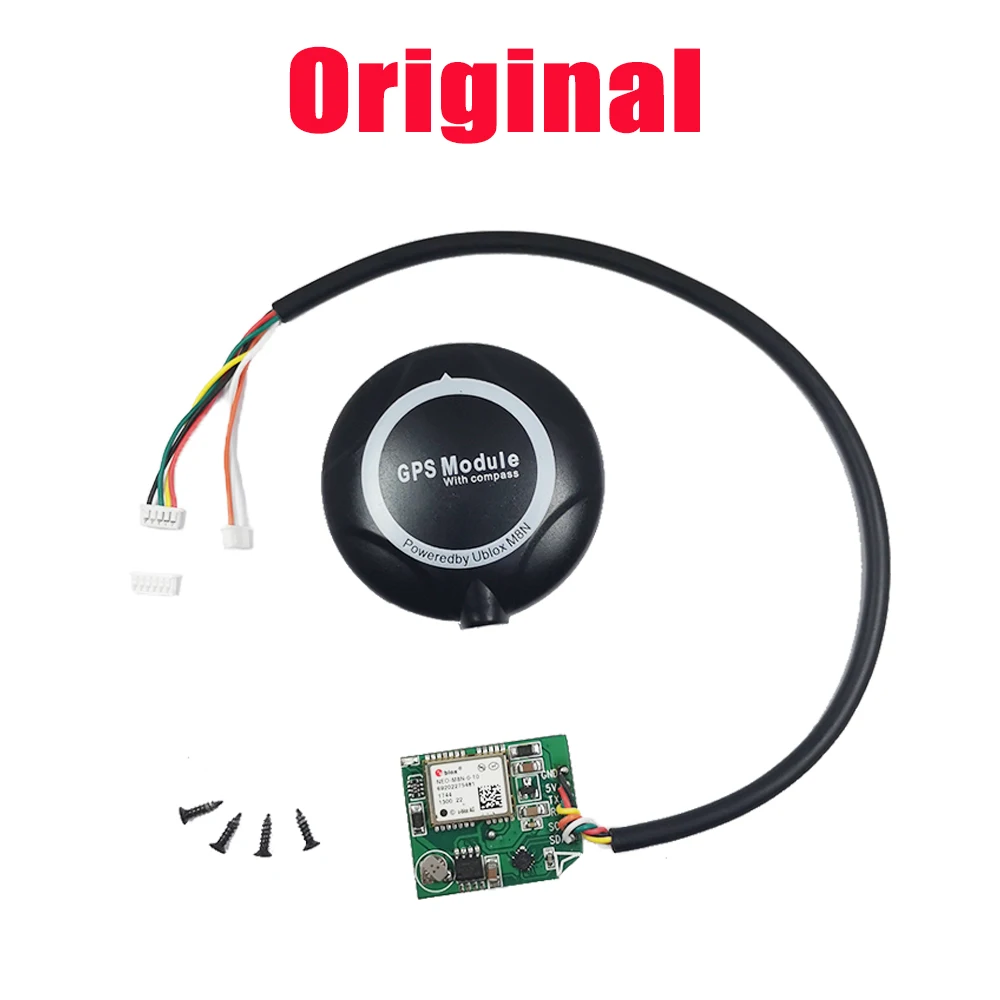

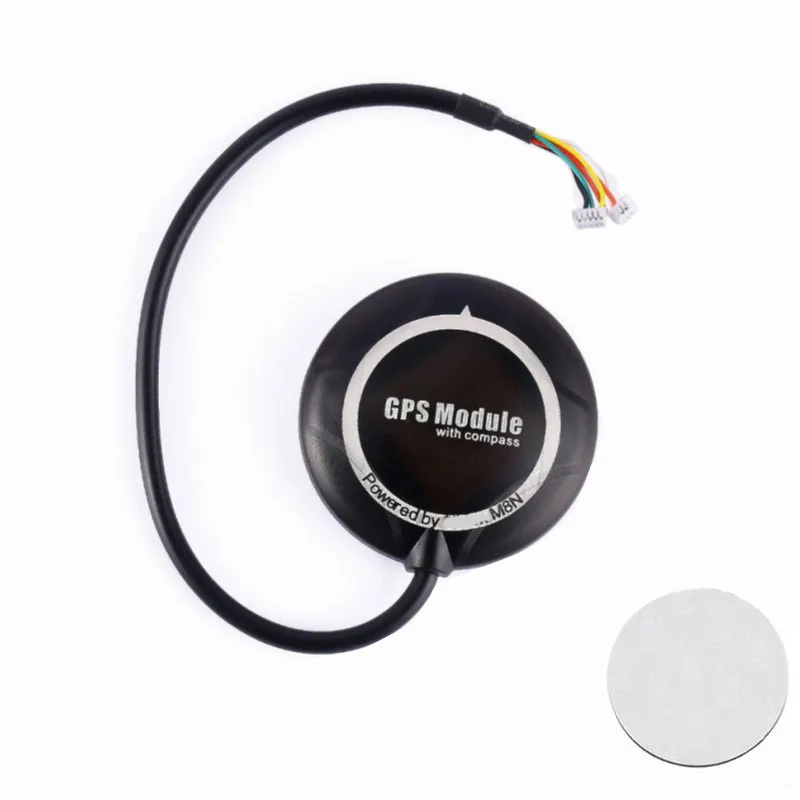

M8N GPS-Modul mit integriertem Kompass M8 Engine PX4 Pixhawk TR APM für RC-Flugzeuge
A new generation GPS M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation 7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more. GPS Chip parameters: Receiver type 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (M8N) Nav. update rate1 Single GNSS: up to 18 HZ Concurrent GNSS: up to 10 Hz Position accuracy2 2.0 m CEP Sensitivity2 Tracking & Nav: –167 dBm Cold starts: –148 dBm Hot starts: –156 dBm Assistance AssistNow GNSS Online AssistNow GNSS Offline (up to 35 days)3 AssistNow Autonomous (up to 6 days) OMA SUPL & 3GPP compliant Oscillator TCXO (M8N/Q), Crystal (M8M) RTC crystal Built-In Noise figure On-chip LNA (M8M). Extra LNA for lowest noise figure ( M8N/Q) Anti jamming Active CW detection and removal. Extra onboard SAW band pass filter (M8N/Q) Supported antennas Active and passive Odometer Travelled distance Data-logger For position, velocity, and time ( M8N) Operating temp. –40° C to 85° C Storage temp. –40° C to 85° C (M8N/Q)
