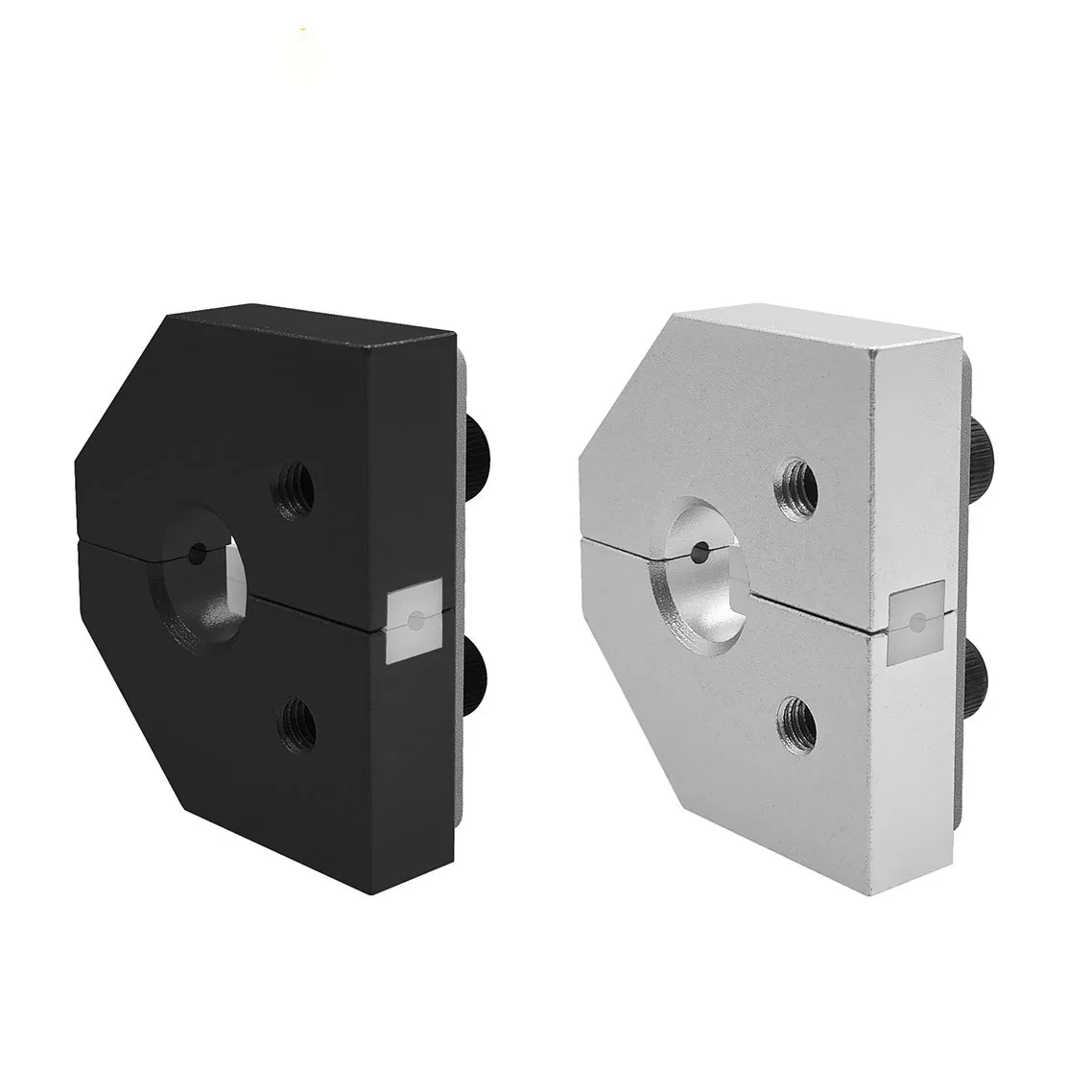

Product Name: Filament Welder Connector Size: 1.75MM Color: black/ silver Material: Aluminum Package list 1PC * Filament Connector 1PC* Allen Key Advantage Made of metal material, high quality，innovative design, easy to use. How to use 1.Trim the two filament heads that need to be connected. 2.One end pass-through from the direction of the big end of the filament welder to the tick mark. 3.The other end pass-through from the direction of the small head to the exposed 1-2mm. 4.Burn with fire for 5-7 seconds. (This time is mainly for ordinary pla, abs, other harder filament should be slightly longer) 5.Then quickly push the filament from the small end into the small hole at the big end, slowly (must not be fast). 6.Then slowly pull back when the joint is exposed, back and forth several times. 7.After the filament is completely cooled, the filament is completely pushed out from the small head end until it can be easily trimmed. 8.Test the results after the repair is completed(carefully bend the joint - straighten - bend - straighten). 9.If you hear a crisp sound, we need to weld again. 10.Unscrew the bolt at one end of the waist groove the connecting piece with, take out the filament, and assemble the filament welder for the next use. Note 1.The more the filament is used, the more severe the final bending is, and the strength of the rebound is relatively large.Therefore, it is stabilized with one finger before the fire, which can increase the success rate. 2.The hardness of the filament of different materials is different. 3.The harder the material is, the longer the burning time is. 4.Do not wait until the end of the filament is very close to the extruder. When using, push from the small end to the big end. FRQ: why is the received connector aperture larger than the standard 1.75? A: when using the lighter to heat, the consumables expand when
