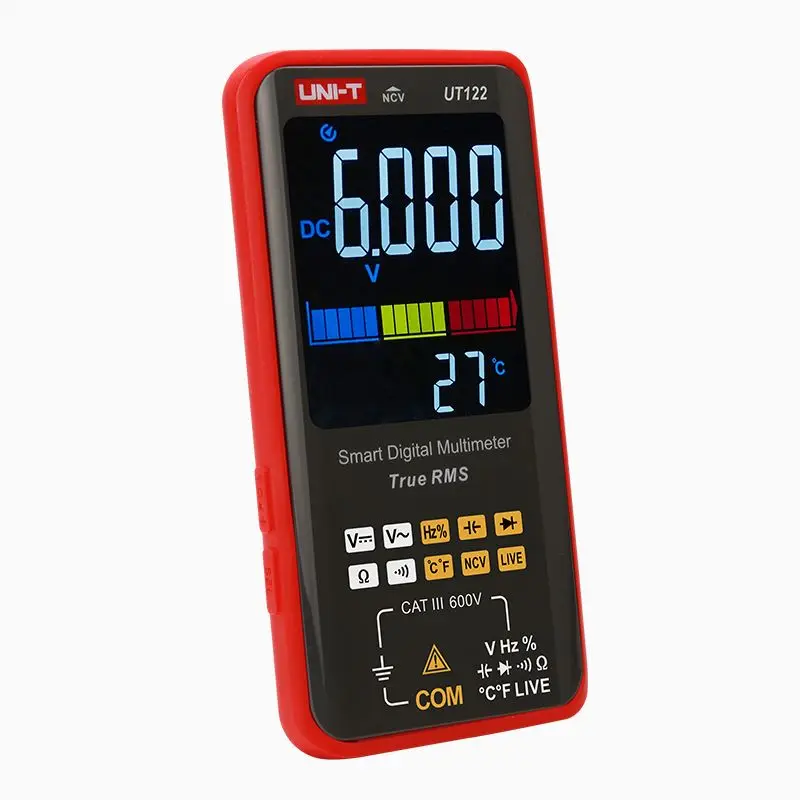

UNI-T Smart Digital Multimeter UT121A UT121B UT122 AC DC Spannung Tester Multimeter True RMS Digital Kapazität Frequenz Meter

UT121 Series Smart Digital Multimeters UT121 series feature large-screen & ultra-thin multimeters and auto range and they can display two measurement results at the same time, which is convenient for home and non-professional users. They are convenient and fast electronic tools. Features ● True RMS ● AC/DC 600V voltage measurement (UT121A) ● AC 750V/DC 1000V voltage measurement (UT121B) ● 60MΩ large resistance measurement (UT121B) ● 60mF large capacitance measurement (UT121B) ● AC/DC 600V voltage measurement (UT122) ● 60MΩ large resistance measurement (UT122) ● 99mF large capacitance measurement (UT122) ● Built-in rechargeable lithium battery, Type-C charging (UT122) ● Temperature measurement (UT122) ● Full-scale input protection ● NCV/LIVE measurement ● Large size LCD screen ● 19mm ultra-thin body ● 6000counts ● Intelligent identification gear Parameters Specifications Range UT121A UT121B UT122 AC voltage (V) 6.000V/60.00V/600.0V ±(1.0%+3) ±(1.0%+3) 6.000V/60.00V/600.0V/750.0V ±(1.5%+3) AC voltage frequency (Hz) 10Hz-1kHz ±(0.5%+2) ±(0.5%+2) ±(0.5%+2) DC voltage (V) 6.000V/60.00V/600.0V ±(0.7%+3) ±(0.5%+3) 6.000V/60.00V/600.0V/1000.0V ±(1.2%+3) Resistance (Ω) 6000Ω/60.00KΩ/600.0KΩ/6.000MΩ/10.00MΩ ±(2.0%+5) 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ ±(2%+5) 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ ±(2.0%+5) Capacitance (F) 60.00nF/600.0nF～600.0μF/6000uF～60.0mF ±(10%+5) 99.99nF/999.9nF～9.999μF/9.999mF～99.99mF 10% Frequency (Hz) 10.00Hz-10.00MHz ±(0.1%+3) ±(0.1%+3) Temperature(℃/℉) –40℃～1000℃/–40°F～1832°F ±3℃/±6℉ ±3℃/±6℉ Features Display count 6099 6099 6199 Dual display √ √ √ Auto range √ √ √ NCV detection √ √ √ LIVE detection √ √ √
