Gimbal-Koaxialleitung für DJI Mavic 3er / CINE / Classic / Pro / 3T M30T Kamera PTZ-Kabel Signalleitungübertragung Flexdraht

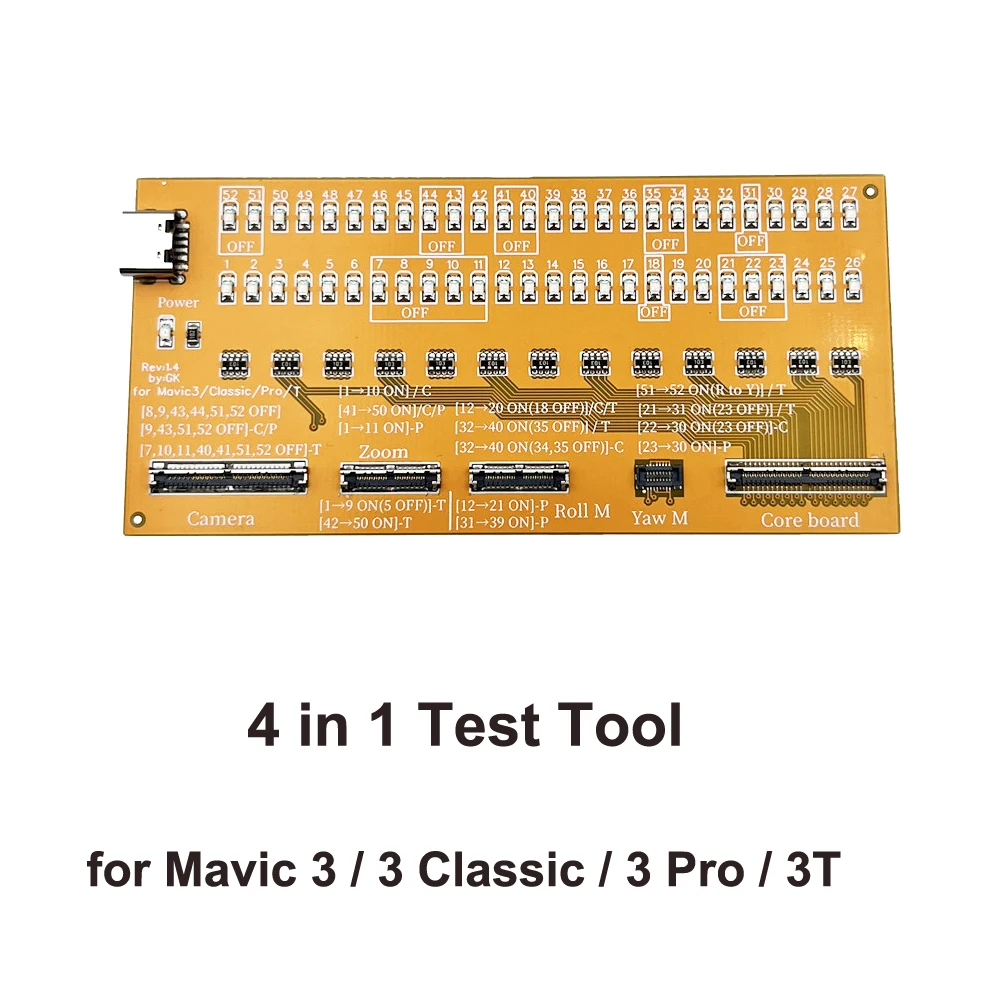

Feature: High Quality PTZ Cable Fit for DJI Mavic 3 and Mavic 3 CINE and Mavic 3 Classic and Mavic 3T and Mavic 3 Pro and M30T How to use the test tool (Mavic 3 and Mavic 3 CINE ) : 1,Camera to Core Board (1-50 on and 8,9,43,44 off) 2,Zoom to Core Board (1-10 on and 41-50 on , the other off) 3, Roll M to Core Board (12-20 on but 18 off , 32-40 on but 35 off) 4, ROll M to Yaw M (51-52 on) 5 , Yaw M to Core Board (21-31 on but 23 off) How to use the test tool (Mavic 3 Classic ) : 1,Camera to Core Board (1-50 on and 9,43,44,51,52 off) 2, Roll M to Core Board (12-20 on but 18 off , 32-40 on but 34 , 35 off) 3 , Yaw M to Core Board (22-30 on but 23 off) How to use the test tool (Mavic 3 Pro / 3 Pro CINE ) : 1,Camera to Core Board (1-50 on and 9,43,44 ,51,52 off) 2,Zoom to Core Board (1-11 on and 40-50 on , the other off) 3, Roll M to Core Board (12-21 on , 31-39 on ) 4, ROll M to Yaw M (51-52 on) 5 , Yaw M to Core Board (23-30 on) How to use the test tool (Mavic 3T ) : 1,Camera to Core Board (1-50 on and 7,10,11,40,41,51,52 off) 2,Zoom to Core Board (1-9 on (5 off ) and 42-50 on ) 3, Roll M to Core Board (12-20 on (18 off), 32-40 on (35 off) ) 4, ROll M to Yaw M (51-52 on) 5 , Yaw M to Core Board (21-31 on , 23 off) Important : 1, only test connection and disconnection of cable 2, Please use tweezer
